Structural Eaves for Lean-To Roofs

(Choice of length and colour)

Part of Heavy Duty Self-Supporting Roof System

Strong extruded aluminium section for lean-to roof eaves support. Features glazing support trim, interior and exterior uPVC cladding and end covers.

The whole Heavy Duty Self-Supporting Roof System is flexible and easy to use and can span 4m unpupported without cross bearers. Whatismore, it can be used with polycarbonate and glass.

Features & Benefits

Long-Life Durability - strong aluminium extrusion
Maintenance Free - no preparation or painting required
Excellent Weather Proofing - support trim has co-extruded gaskets
Polycarbonate or Glass - unlike others, this system can be used with glass
Choice of Thickness - locking points for 16, 25, 32 and 35mm panels
Flexibility of Use - can be pitched from 5° upwards
Ease of Fitting - support trim, and cladding simply click into place.
Integral Gutter System - optional gutter system just clicks securely in place
Thermally Broken - reduces heat transfer and cuts down on condensation

Suitable for a variety of applications, including lean-tos, conservatory roofs, canopies and car ports.

Complete self-supporting roof system

The range includes Wall Plate for securing glazing bars to house wall, structural Eaves Beam for the low end, standard Main Bar for use as an intermediate between in-line sheets, Gable End Bar for exposed end of lean-to and Wall Bar for abutting a wall. The Wall Bar is the standard Main Bar with separate Flashing Trim.

Heavy Duty Self-Supporting Roof parts

Heavy Duty

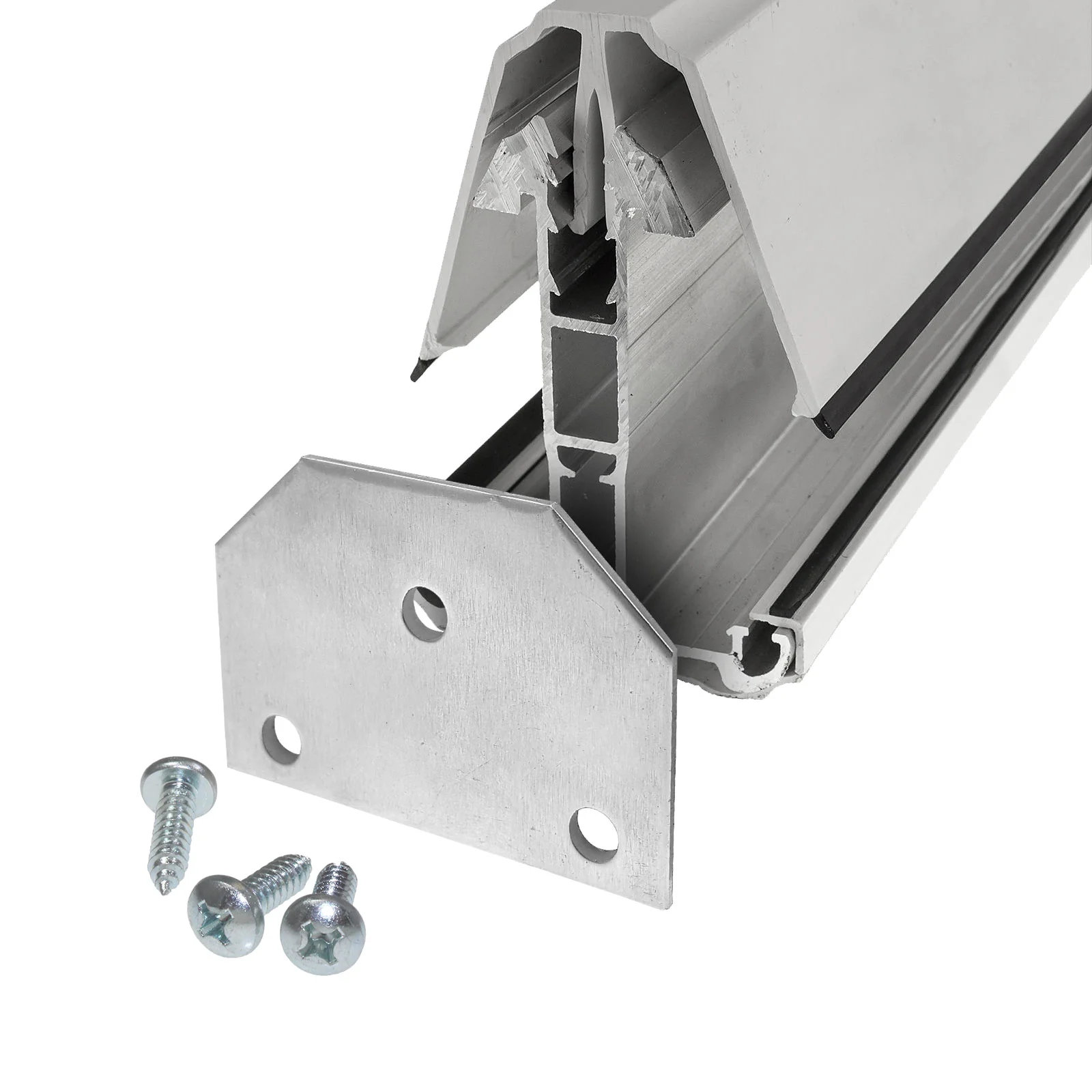

Heavy Duty Self-Supporting Glass Retaining Plate

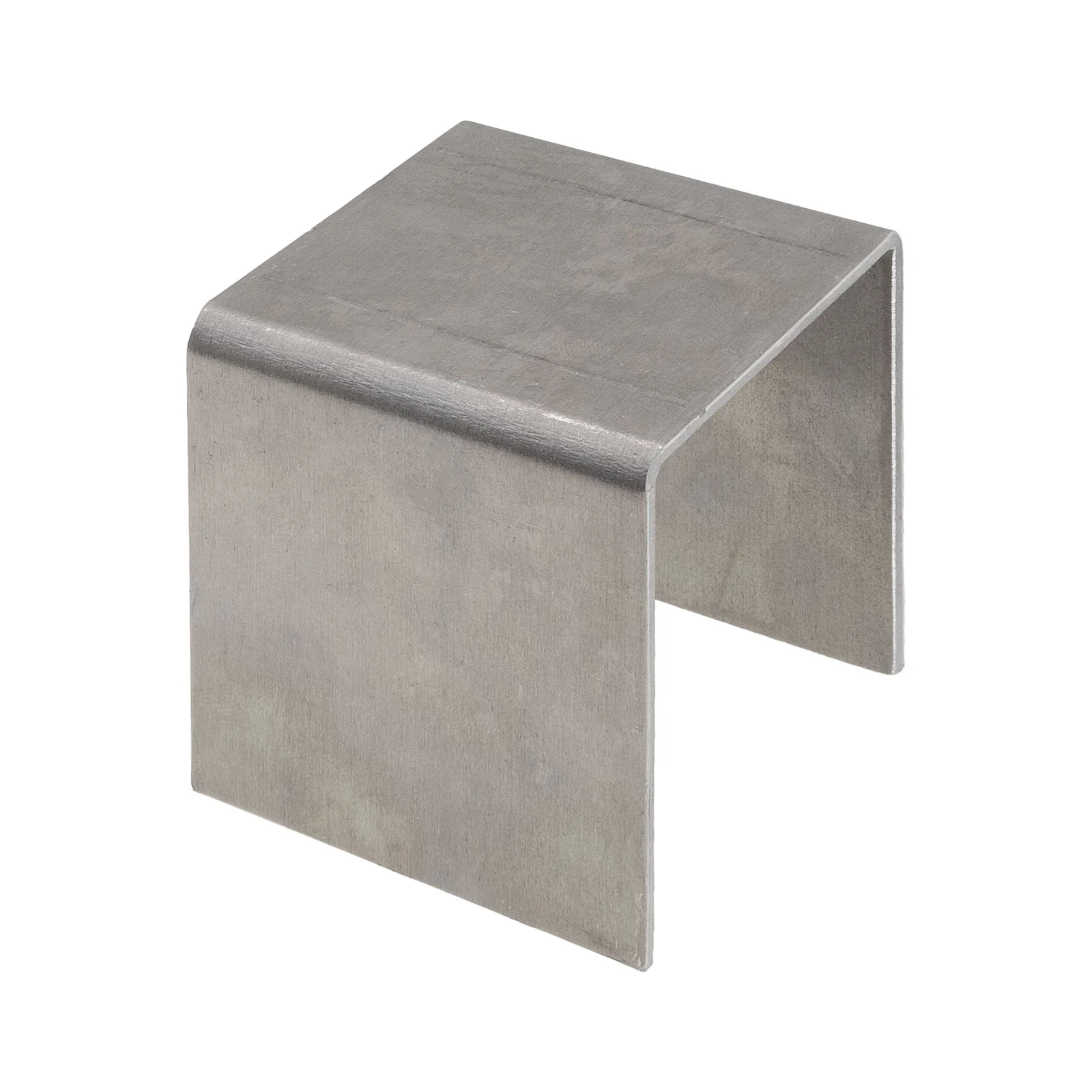

Self-Supporting Support Post Eaves Bracket

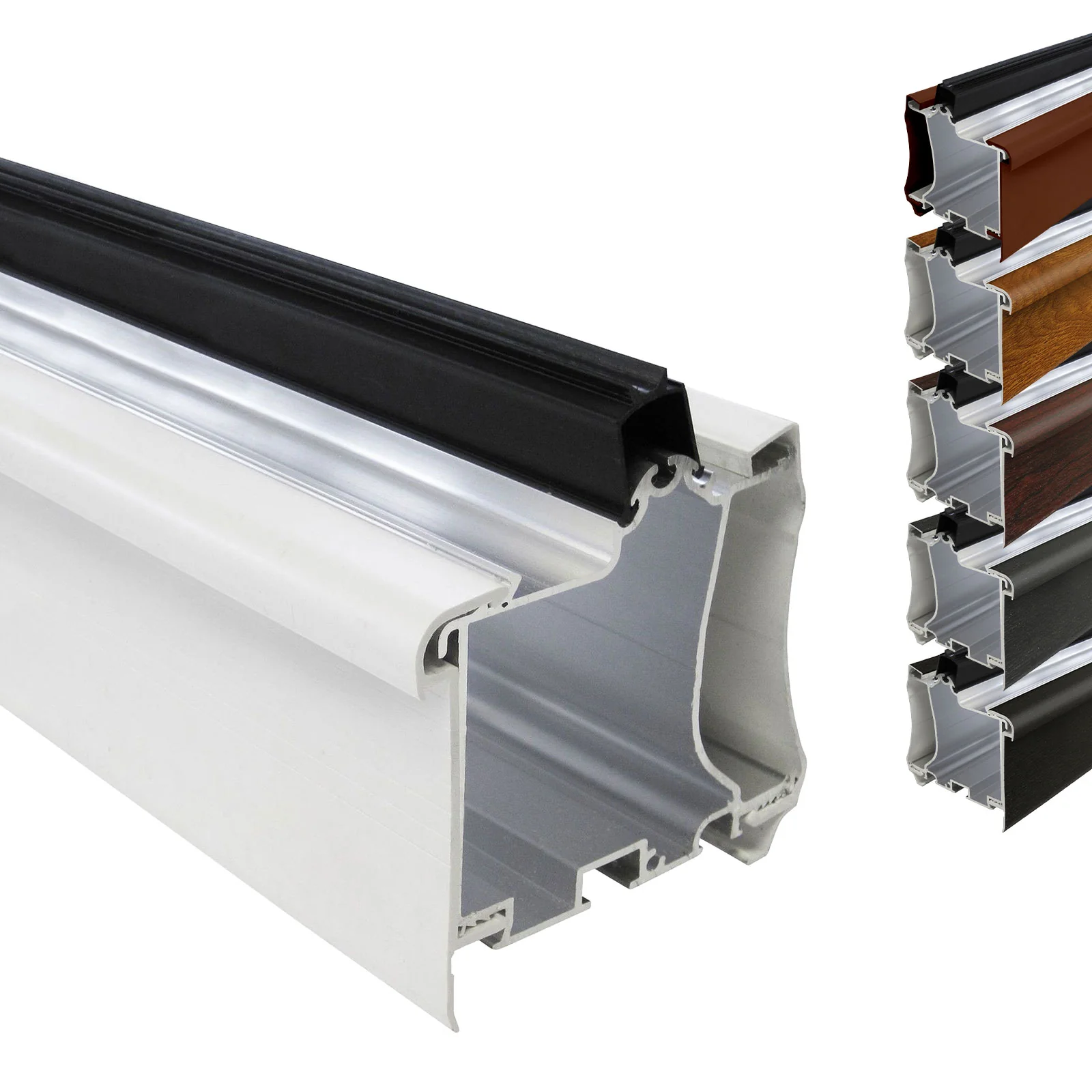

Heavy Duty Self-Supporting Eaves Beam

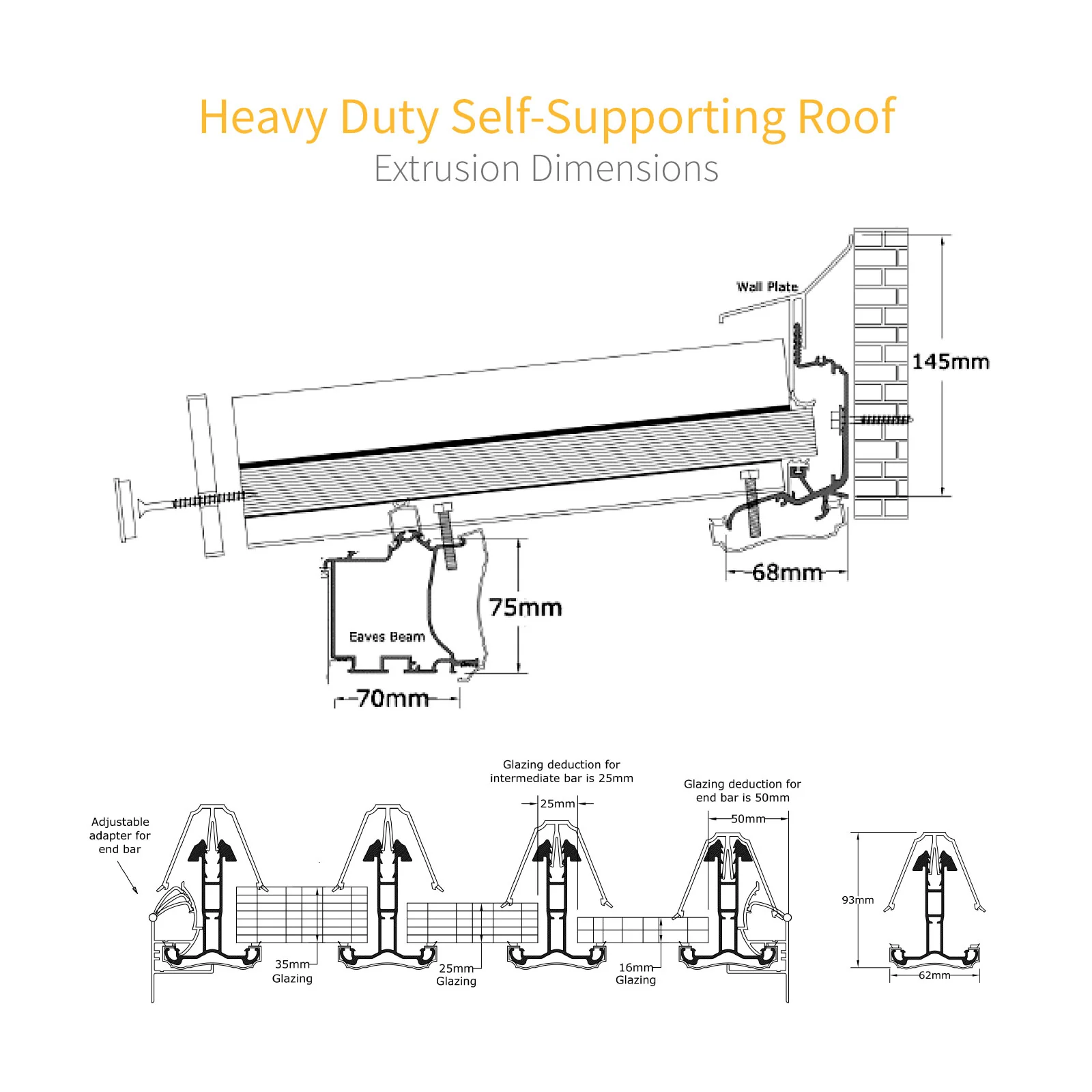

Heavy Duty Self-Supporting Wall Plate

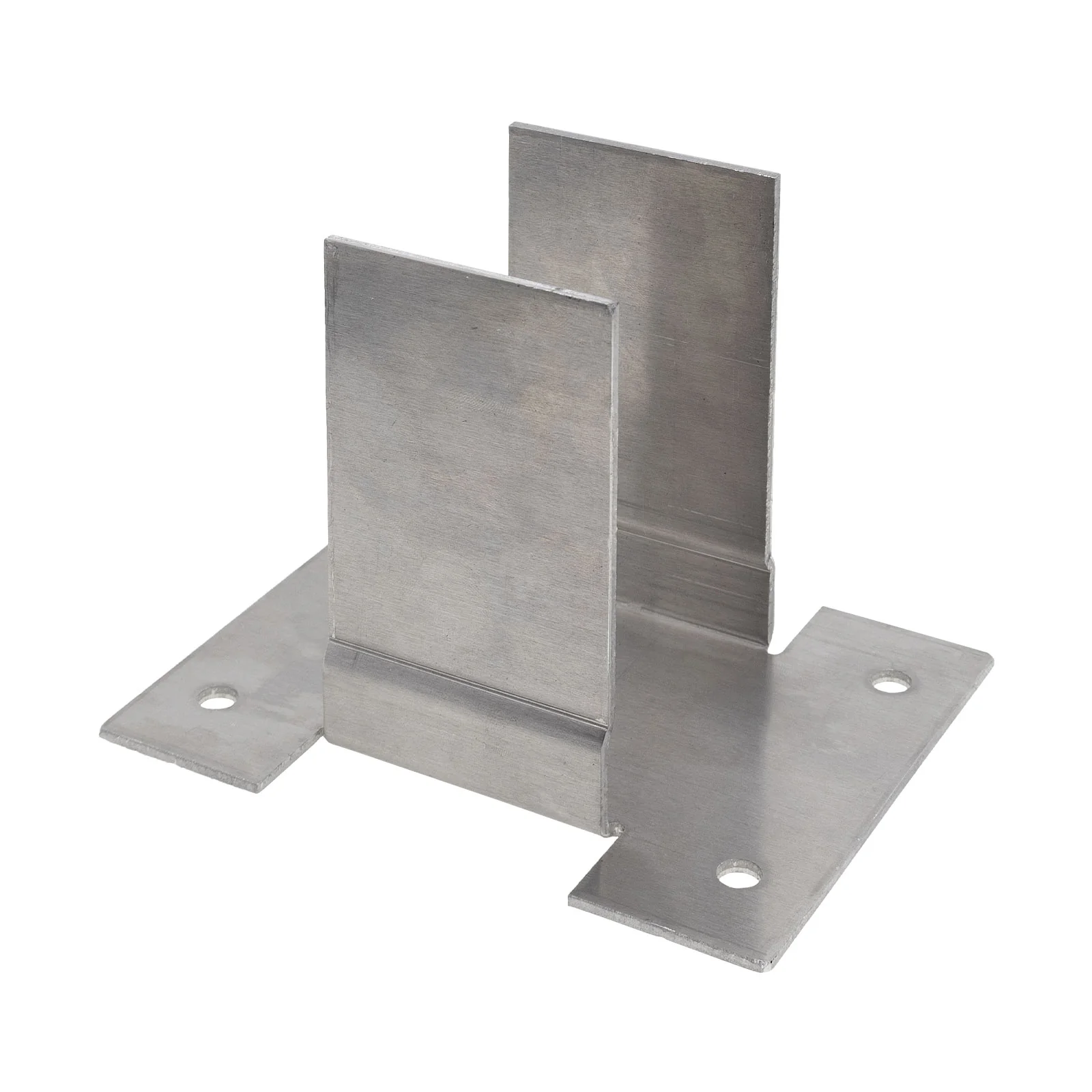

Self-Supporting Support Post Foot Plate

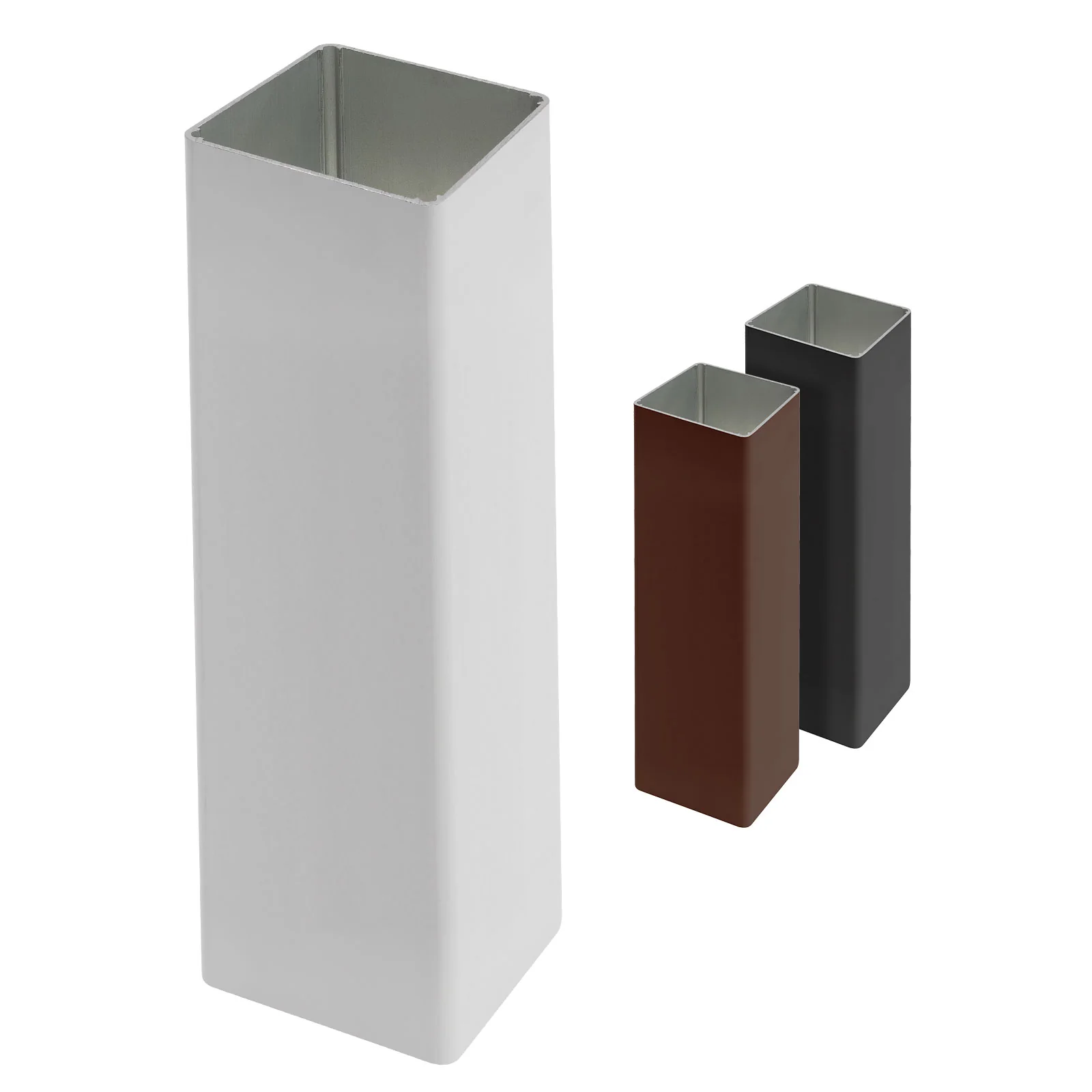

Self-Supporting Support Post
